114mm high power high torque Permanent Magnet Motors 600w 12v/24v/90v/220v

FOB Reference Price:Get Latest Price
$40.45 - $70.00 / Piece | 2 Piece/Pieces (Min. Order)
Voltage(V):
12V to 220V
Output Power:
400W to 700W
Shipping:
Support Express · Sea freight
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 100 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
Leison Motor
Model Number:
ZYT114
Usage:
Home Appliance, Car, Fan, Other
Certification:
CE, ROHS
Type:
ZYT Motor
Torque:
2.4-3.86N.m
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Totally Enclosed
Speed(RPM):
1000rpm to 3000rpm
Continuous Current(A):
depends
Efficiency:
IE 1
Direction of Rotation:
CW, CCW
Shaft diameter:
16mm
Shaft length:
Customized
Motor dimension:
114mm
Motor length:
204mm,244mm
Shaft Material:
Carbon Steel or Stainless Steel
Shaft type:
D-cut, round or keyway
Bearing:
oil bearing
Motor net weight:
6.82 to 8.2Kg
Keywords:
dc motor 12v/24v
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1. Ctn size:32*28*26cm
2. 20pcs per ctn, 5pcs per layer(foam packing)
3. N.W.: (1-18)kgs, G.W.: (2-19)kgs
4. As customer's requested
Port
Ningbo Shanghai
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 15 To be negotiated

114mm high power high torque Permanent Magnet Motors 600w 12v/24v/90v/220v

Product Description

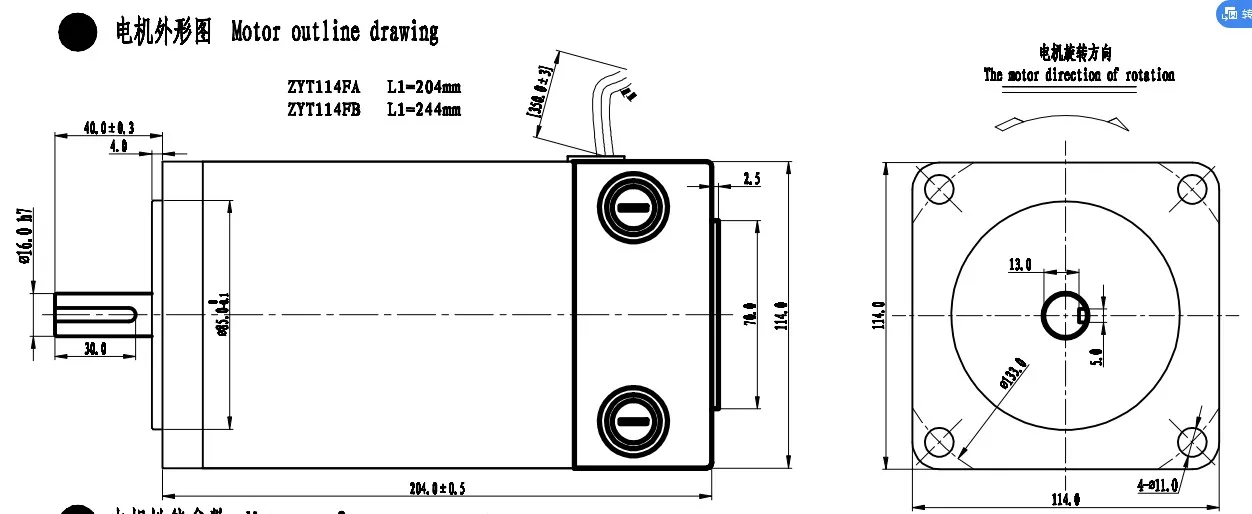

1. Motor Pictures



2. Motor Specifications (Can be Customized)

Part Number
ZYT114
Dimension
114mm*Lmm
Voltage
DC Input12v,24v,36v,48v,220v (Can be Customized)
Power
400w,450w,500w,600w,700w (Can be Customized)
Speed
Variable speed from 1000rpm to 3000rpm (Can be Customized)
Torque
2.4-3.86N.m (Can be Customized)
Shaft
shaft Dia: 16mm
shaft material: 40Cr /Carbon Steel /Stainless Steel
Shaft type: Bare /D-Cut /Double D-Cut /Pin Hole /Keyway shaft (Can be Customized)
Bearing At Output
Ball bearing / Sleeve bearing
Accessories
Wires, Connectors, Gearbox, Encoder, Brake, Cool Fan, etc (Optional)
Weight
6.82 to 8.2Kg
Note
Motor specs such as voltage, speed, torque, the shaft can be customized. Please contact us if didn't find a suitable motor from our specifications.
        Model No.Voltage     (V)

Output Power (W)

No-load Parameters      Load Parameters

Brush Life    (H)


 Motor Weight(KG)
Speed (r/min)Current (A)Speed (r/min)Current     (A)Torque (N.m)
ZYT114FA-24-18002450018001.5Max1500403.720006.82
ZY114FA-24-30002470030001.85Max2500601720006.82
ZY114FA-48-18004845018000.9Max1500143.8620006.82
ZY114FA-110-180011060018000.45Max1500103.520006.82
ZY114FA-12-18001240018001.80Max1500532.420008.2
ZY114FA-220-300022070030000.25Max25004.53.821008.2
ZY114FB-24-18002450018002.1Max1500303.220008.2
ZY114FB-12-18001250030004.2Max2500603.220008.2
Note: It's just the typical technical data for your reference, The specification such as voltage, speed, torque, and shaft can be customized.

3. Motor Details



4. Related Products

.jpg

Company Information

 1. Basic Information


Ningbo Leison Motor Co. Ltd is a manufacturer and exporter of various of motors with over 10 years experience.

Our product ranges include:
1) DC Brush Motor: 6-130mm diameter, 0.01-1000W output power
2) DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power
3) DC Planetary Gear Motor: 10-82mm diameter, 0.1-100W output power
4) Brushless DC Motor: 28-110mm, 5-1500W output power
5) Stepper Motor: NEMA 08 to NEMA 43, Can with gearbox and lead screw
6) Servo Motor: 42mm to 130mm diameter, 50-4000w
7) AC Gear Motor: 49 to 100mm diameter, 6-140 output power



2. Manufacturing Plant




3. Certifications


Packaging & Shipping

 1. Packing



2. Delivery

Delivery

Payment Method

 .png



Customer Visits
.jpg
FAQ



Q: What're your main products?
A: We currently produce Brushed Dc Motors, Brushed Dc gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors, and Ac Motors, etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.

Q: How to select a suitable motor?
A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level, etc, please do not hesitate to let us know, then we can recommend a suitable motor per your request accordingly.

Q: Do you have a customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.

Q: Do you have an individual design service for motors?
A: Yes, we would like to design motors individually for our customers, but it may need some mold charge and design charge.


Q: Can I have samples for testing first?
A: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.

Q: How do you make sure motor quality?
A: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for the production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.

Q: What's your lead time?
A: Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders

Q: What's your payment term?
A: For all our new customers, we will need a 40% deposit, 60% paid before shipment.

Q: When will you reply after got my inquiries?
A: We will respond within 24 hours once get your inquiries.

Q: How can I trust you to make sure my money is safe?
A: We are certified by the third party SGS and we have exported to over 85 countries up to June.2017. You can check our reputation with our current customers in your country (if our customers do not mind), or you can order via Alibaba to get trade assurance from Alibaba to make sure your money is safe.

Q: What's the minimum order quantity?
A: Our minimum order quantity depends on different motor models, please email us to check. Also, we usually do not accept personal use of motor orders.

Q: What's your shipping method for motors?
A: For samples and packages less than 100kg, we usually suggest express shipping; For heavy packages, we usually suggest air shipping or sea shipping. But it all depends on our customers' needs.

Q: What certifications do you have?
A: We currently have CE and ROSH certifications.

Q: Can you send me your price list?
A: Since we have hundreds of different products, and price varies per different specifications, we are not able to offer a price list. But we can quote within 24 hours once got your inquiries to make sure you can get the price in time.

Q: Can I visit your company?
A: Yes, welcome to visit our company, but please let us know at least two weeks in advance to help us make sure no other meetings during the day you visit us.
