M542 2-phase good price stepper motor driver for nema 17 and nema 23 motor

FOB Reference Price:Get Latest Price
$20.90 - $30.00 / Piece | 1 Piece/Pieces (Min. Order)
Motor Type:
Stepper Motor
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
LEISON MOTOR
Model Number:
M542
Voltage:
24V-50V
Output voltage:
1.0-4.2A
Power:
80W
Weight:
About 300g
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
B3B Corrugated Standard Export Carton or Styrofoam box or Blister Tray 2. As customer's requested
Port
NINGBO
M542 stepper motor driver specificaiton:

Introduction:
M542MA is a type of two-phase hybrid stepping motor driver, the drive voltage of it is from
18VDC to 50VDC. It is designed for use with 2-phase hybrid stepper motor of all kinds with
42mm to 86mm outside diameter and less than 4.0A phase current. This circuit that it adopts
is smiliar to the circuit of servo control which enables the motor run smoothly almost without
noise and vibration. Holding torque when M542MA run under high speed is also significantly
higher than the other two-phase driver, what’s more, the positioning accuracy is also higher.
It is widely used in middle and big size numerical control devices such as curving machine,
CNC machine, and computer embroider machine, packing machines and so on.

Features:
l High performance, low price
l Average current control, 2-phase sinusoidal output current drive
l Supply voltage from 18VDC to 50VDC

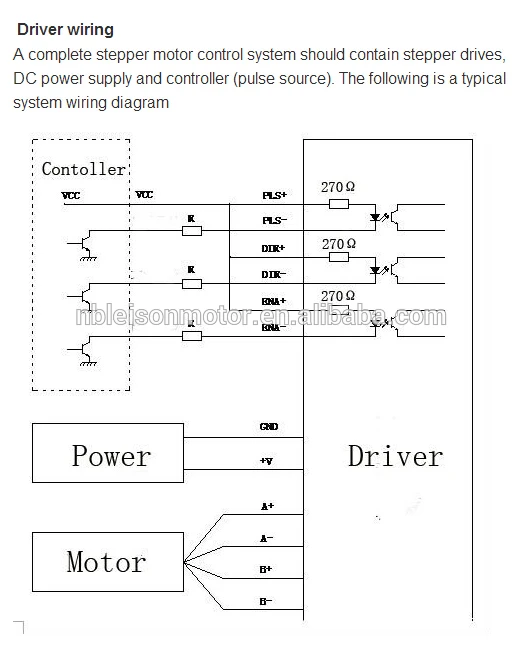

l Opto-isolated signal I/O
l Overvoltage, under voltage, overcurrent, phase short circuit protection

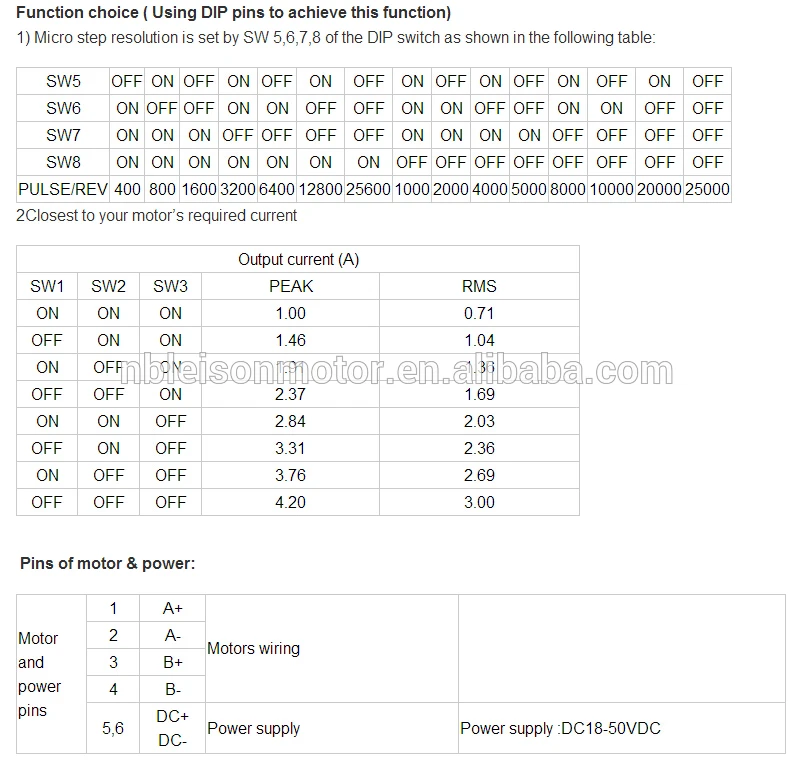

l 15 channels subdivision and automatic idle-current reduction
l 8 channels output phase current setting
l Offline command input terminal
l Motor torque is related to speed, but not related to step/revolution
l High start speed
l High hording torque under high speed

Electrical specification:

Input voltage
18-50VDC
Input current
< 4A
Output current
1.0A~4.2A
Consumption
Consumption:80W; Internal Insurance:6A
Temperature
Working Temperature -10~45°C;
Stocking temperature -40°C~70°C
Humidity
No condensation, no water droplets
gas
Prohibition of combustible gases and conductive dust
weight
300G
