NEMA 16 Size 39mm Small Hybrid Step Motor

FOB Reference Price:Get Latest Price
$5.30 - $7.50 / Piece | 1 Piece/Pieces (Min. Order)
Voltage(V):
12-48V
Output Power:
50W
Samples:
$7.50 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Leison Motor
Model Number:
16HM
Usage:
Home Appliance
Certification:
CE, ROHS
Type:
STEPPER MOTOR
Torque:
8-25n.Cm
Construction:
Permanent Magnet
Protect Feature:
Totally Enclosed
Speed(RPM):
constant speed
Continuous Current(A):
0.4-1.5A
Efficiency:
IE 1
Phase:
2
Motor Body Length:
20mm,26mm,34mm,40mm
Step Angle:
0.9degree
Wire:
4 or 6 Wires
Resistrance Accurancy:
±10
Shaft:
D-Cut or Round, Customized Shaft Length
Bearing:
oil bearing
Ambient Temperature:
-20° - +50°
Step Angle Accuracy:
±5% Full Step
Phase resistance:
2.5-30
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1 Ctn size:28*30.5*13cm
2 120pcs/ctn, 30pcs/layer(foam packing)
3 N.W.: (3-5)kgs, G.W.: (4-5.5)kgs
4 As customer's requested
Port
Ningbo/Shanghai
Product Description

NEMA 16 Size 39mm Small Hybrid Step Motor

1. Features of 16HM

Current: 0.4-1.5A

Motor length: 20mm,26mm,34mm,40mm

Torque:  8-25N.cm

Wire: 4 or 6

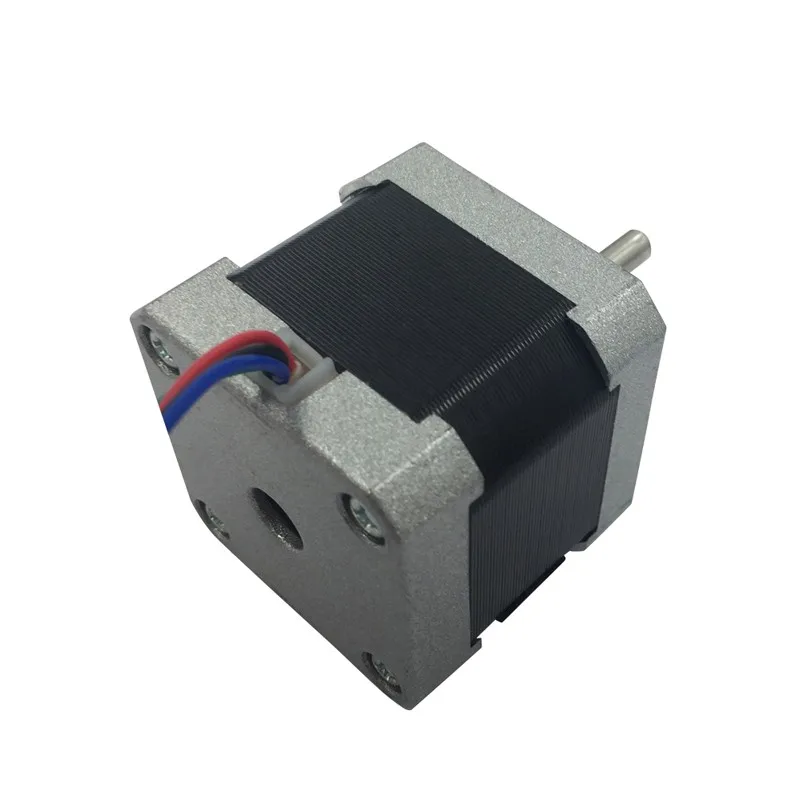

2. Pictures of 16HM

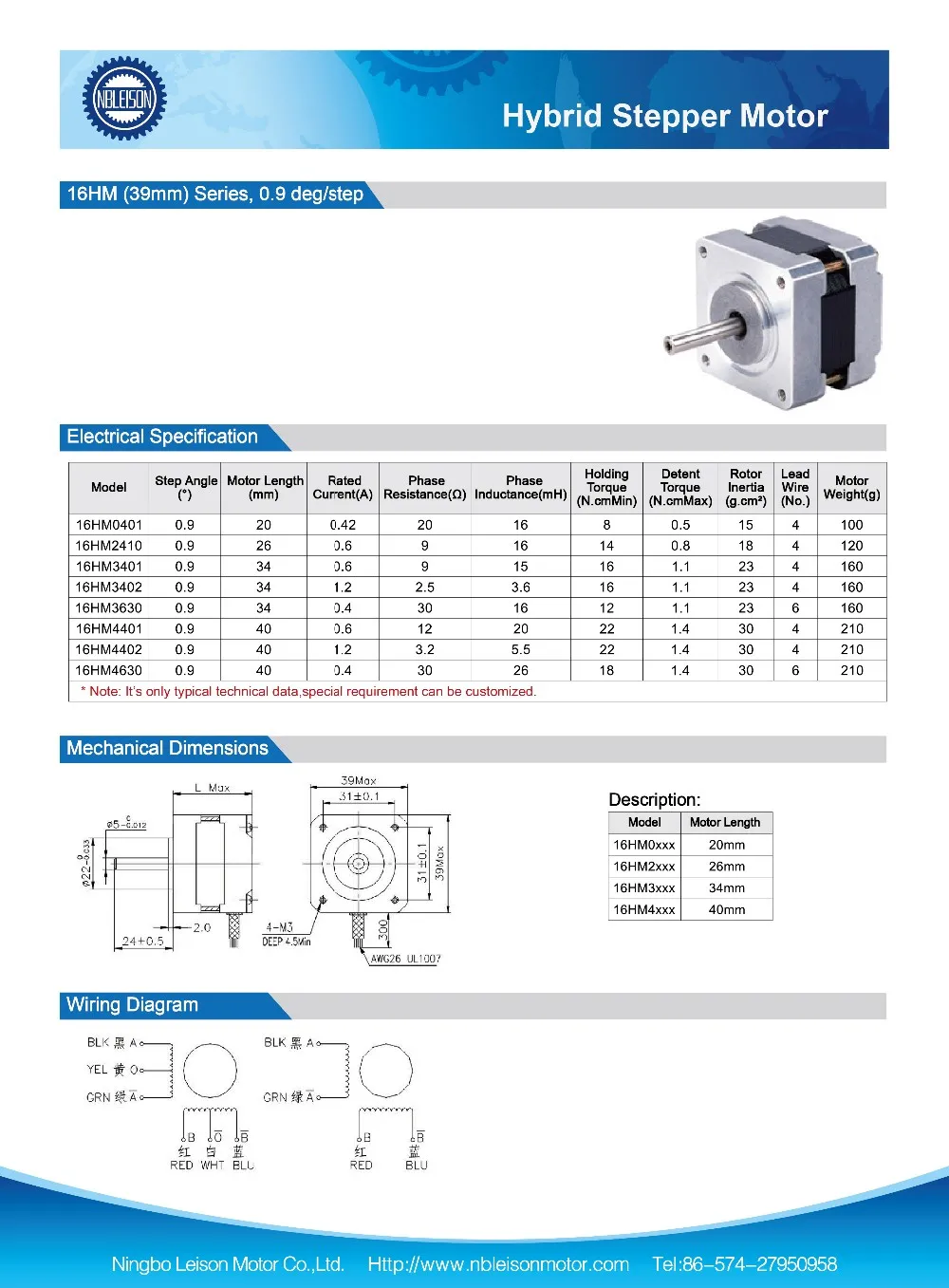

3. Specifications of 16HM

Note: It's the typical specificaitoin for reference only, We can choose DC motor with different voltage speed to meet your torque and speed requirement.
