24V DC Drill Planetary 1:100 Gear Ratio Gear Motor with Encoder 32MM

FOB Reference Price:Get Latest Price
$12.30 - $25.00 / Piece | 1 Piece/Pieces (Min. Order)
Voltage(V):
12/24V
Output Power:
0.1-50W
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 15 Negotiable
Samples:
$25.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
LEISON MOTOR
Model Number:
PG32M555-E
Usage:
Home Appliance, Robot, Automatic Door
Certification:
CE, ROHS
Type:
Gear Motor, DC Gear Motor
Torque:
0.5-25Kgf.cm
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Totally Enclosed
Speed(RPM):
2-2000RPM
Continuous Current(A):
0.01-1A
Efficiency:
IE 1
Gear Type:
Planetary Gear
Gearbox Ratio:
1:3.3 to 1: 2142
Gearbox Diameter:
32mm
Gearbox Length:
20.7-43.8mm
Shaft Material:
Carbon Steel or Stainless Steel
Shaft Type:
D-cut , Round or Keyway
Shaft Diameter:
6mm
Shaft Length:
Customized
Keywords:
DC Gear Motor 12V
Supply Ability
Supply Ability:
150000 Piece/Pieces per Month for DC Gear Motor 12V
Packaging & Delivery
Packaging Details
1. Standard export cartons
2. As customer's requested
Port
NINGBO
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 15 To be negotiated
Product Description

1. Features of PG32M555-E:

--DC Gear Motor
--Planetary Gear Type
--Bi-direction of Rotation
--D-cut or Round Shaft
--Carbon Steel or Stainless Steel Shaft

2. Pictures of PG32M555-E:

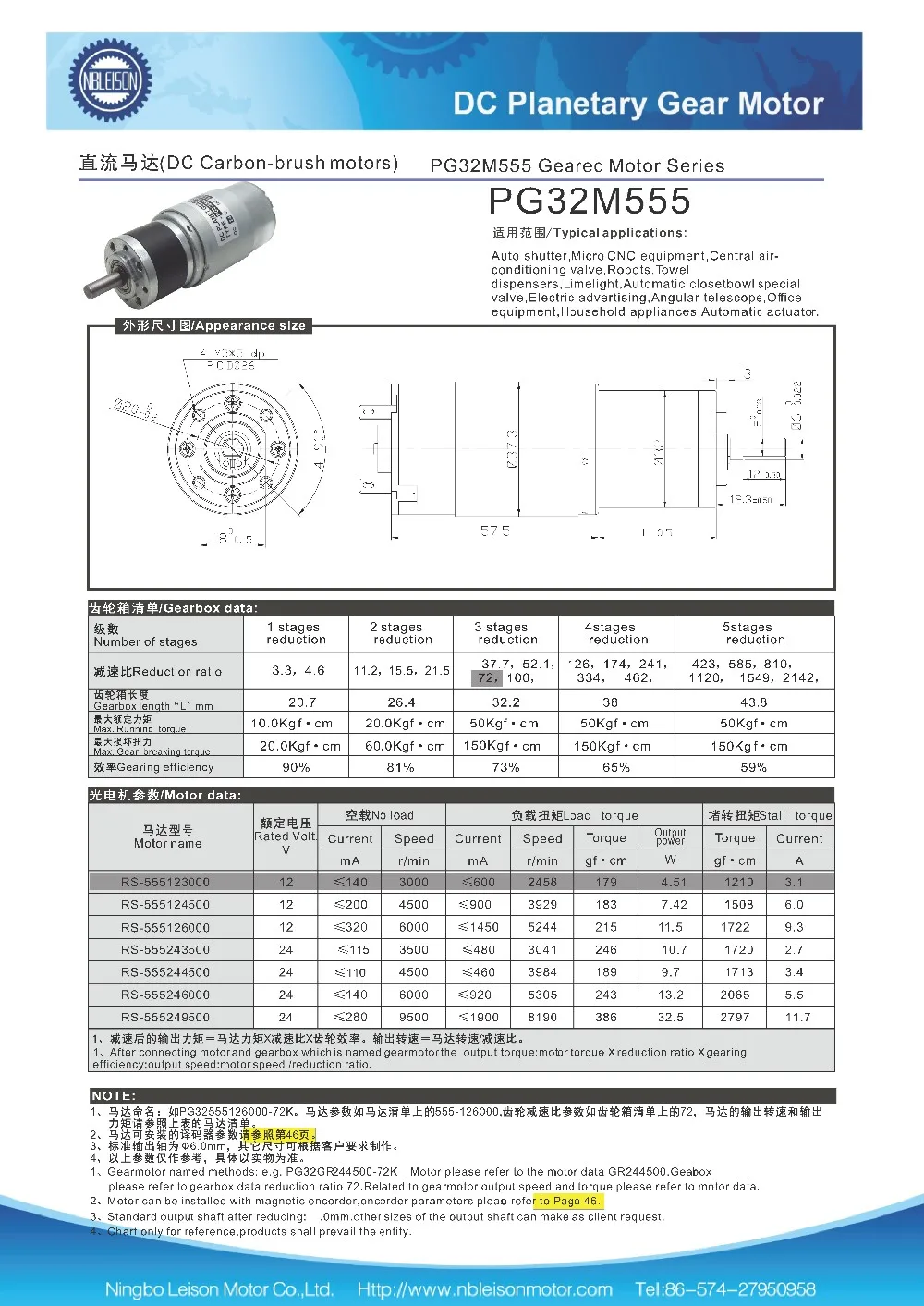

3. Specifications of PG32M555-E:

Voltage: 12/24V
Speed: 3-2000RPM
Torque: 0.5-25Kgf.cm
Output Power: 0.1-50W
Gearbox Ratio: 1:3.3 to 1: 2142
Gearbox Diameter: 32mm
Gearbox Length: 20.7-43.8mm
Motor Length: 57.5mm
Shaft Diameter: 6mm
Shaft Length: Customized

Note : It's just the typical technical data for you reference, The specification such as voltage, speed, torque, shaft can customized.

Related Products
Our Company

Ningbo Leison Motor Co. Ltd is a manufacturer and exporter of various of motors with over 10 years experience.
Our product ranges include:
1) DC Brush motor: 6-130mm diameter, 0.01-1000W output power
2) DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power
3) DC Planeary Gear Motor: 10-82mm diameter, 0.1-100W output power
4) Brushless DC Motor: 28-110mm, 5-1500W output power
5) Stepper Motor: NEMA 08 to NEMA 43, Can with gearbox and lead screw
6) Servo Motor: 42mm to 130mm diameter, 50-4000w
7) AC Gear Motor: 49 to 100mm diameter, 6-140 output power

Various Testing Equipment:

Back Lash Test

Hardness Test

Gear Strength Test

Insulation Test

Life-span Test

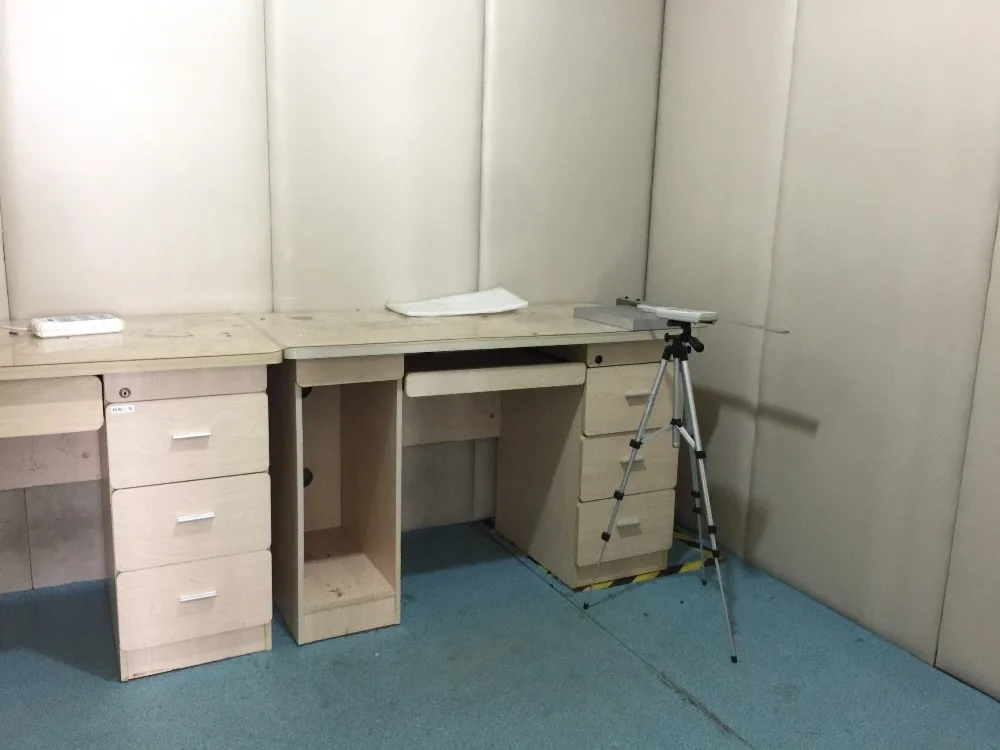

Noise Test

Certifications
Packings
Customers Visit
FAQ

Q: What's your main products?
A:We currently produce Brushed Dc Motors, Brushed Dc gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors and Ac Motors etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.

Q:How to select a suitable motor?
A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.

Q: Do you have customized service for your standard motors?
A:Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.

Q:Do you have individual design service for motors?
A:Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.

Q:Can I have samples for testing first?
A:Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.

Q:How do you make sure motor quality?
A:We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.

Q:What's your lead time?
A:Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depends on the specific orders

Q:What's your payment term?
A:For all our new customers, we will need 40% deposite, 60% paid before shipment.

Q:When will you reply after got my inquiries?
A:We will response within 24 hours once get your inquires.

Q:How can I trust you to make sure my money is safe?
A:We are certified by the third party SGS and we have exported to over 85 countries up to June.2017. You can check our reputation with our current customers in your country (if our customers do not mind), or you can order via alibaba to get trade assurance from alibaba to make sure your money is safe.

Q:What's the minimum order quantity?
A:Our minimum order quantity depends on different motor models, please email us to check. Also, we usually do not accept personal use motor orders.

Q:What's your shipping method for motors?
A:For samples and packages less than 100kg, we usually suggest express shipping; For heavy packages, we usually suggest air shipping or sea shipping. But it all depends on our customers' needs.

Q:What certifications do you have?
A:We currently have CE and ROSH certifications.

Q:Can you send me your price list?
A:Since we have hundreds of different products, and price varies per different specifications, we are not able to offer a price list. But we can quote within 24 hours once got your inquirues to make sure you can get the price in time.

Q:Can I visit your company?
A:Yes, welcome to visit our company, but please let us know at least two weeks in advance to help us make sure no other meetings during the day you visit us. Thanks!

Contact Information

Ningbo Leison Motor Co., Ltd
Contact Person: Celia Chen

Any email or trade messager inquires will be replied within 24 hours.
Normal samples can be offered very quickly(within 10 days)
Customized service for kind of motor according to your requirement
Professional Technical support and After-sale service
Sourcing motor parts like gears, encoders, cables, connectors and so on
