40W 10n. M Reversible AC Induction Motor Geared Motor

FOB Reference Price:Get Latest Price
$50.80 - $82.00 / Piece | 1 Piece/Pieces (Min. Order)
Voltage(V):
110V/220-240V/380V
Output Power:
40W
Samples:
$82.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Leison Motor
Model Number:
5RK40A
Usage:
Home Appliance, Boat, Car, Electric Bicycle, Power tool, Water pump
Certification:
CE, ROHS
Type:
INDUCTION MOTOR
Torque:
0.68-9.8n.M
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Totally Enclosed
Speed(RPM):
2-600rpm
Continuous Current(A):
Current
Efficiency:
IE 1
Shaft diameter:
10mm
Motor Diameter:
83mm
Direction of rotation:
CW CCW
Shaft length:
Customized
Communication:
Brush
Motor dimension:
90mm
Bearing:
oil bearing
Frequency:
50Hz, 60Hz
Gearbox material:
matel
Reduction ratio:
1:3-1:150
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1 Ctn size:28*30.5*13cm
2 120pcs/ctn, 30pcs/layer(foam packing)
3 N.W.: (3-5)kgs, G.W.: (4-5.5)kgs
4 As customer's requested
Port
Ningbo/Shanghai
Product Description

40W 10n. M Reversible AC Induction Motor Geared Motor

1. Features of 5RK40A

Output power: 40w

Capacitor: 3.0/12.0uf

Torque: 0.68-9.8N.m

Speed: 2-600rpm

Typical applications: Boat, Car, Electric Bicycle, Power tool, Water pump

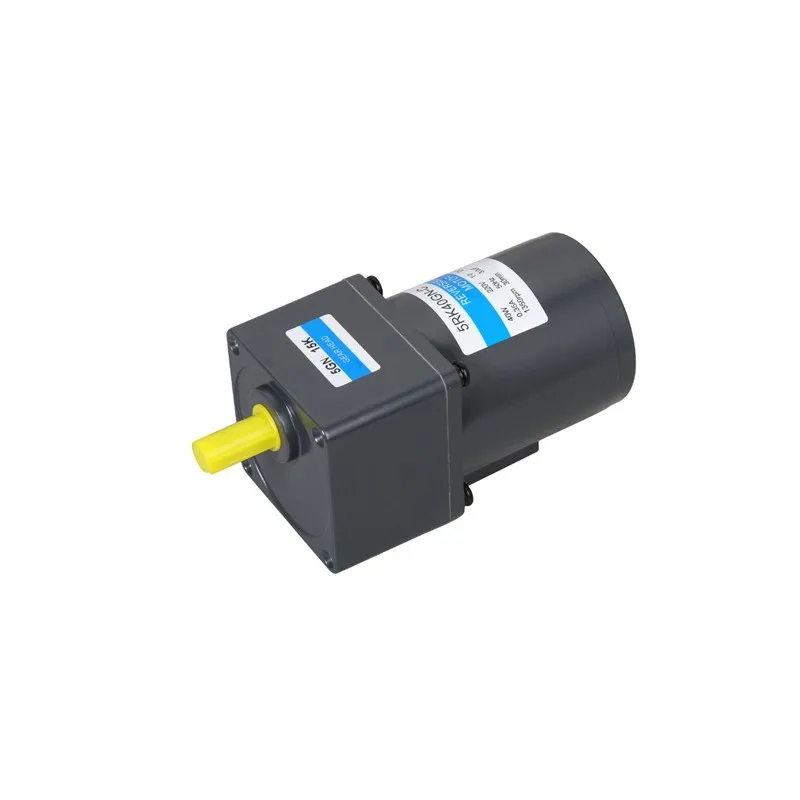

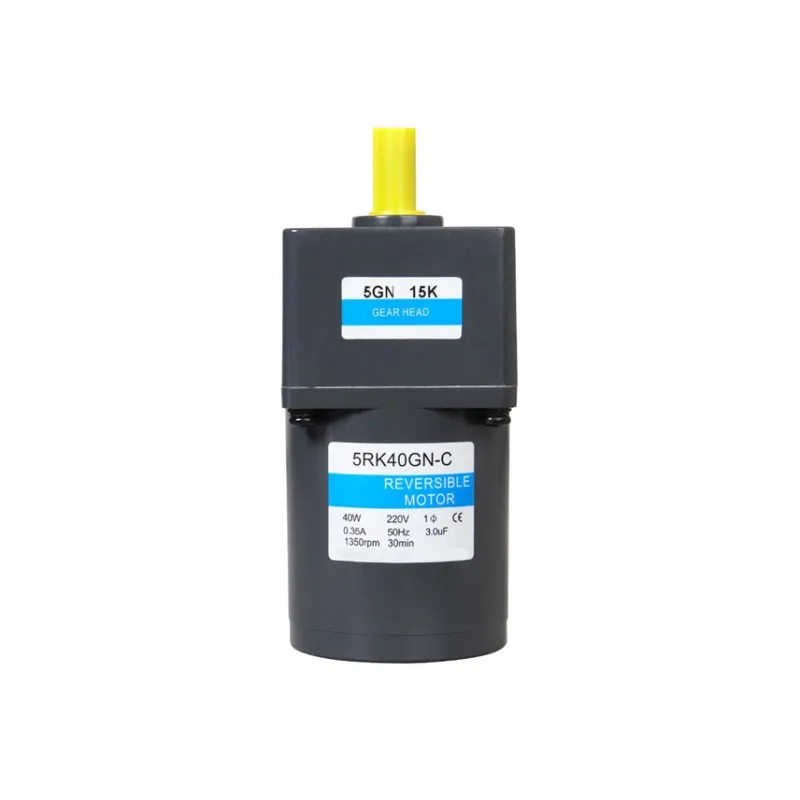

2. Pictures of 5RK40A

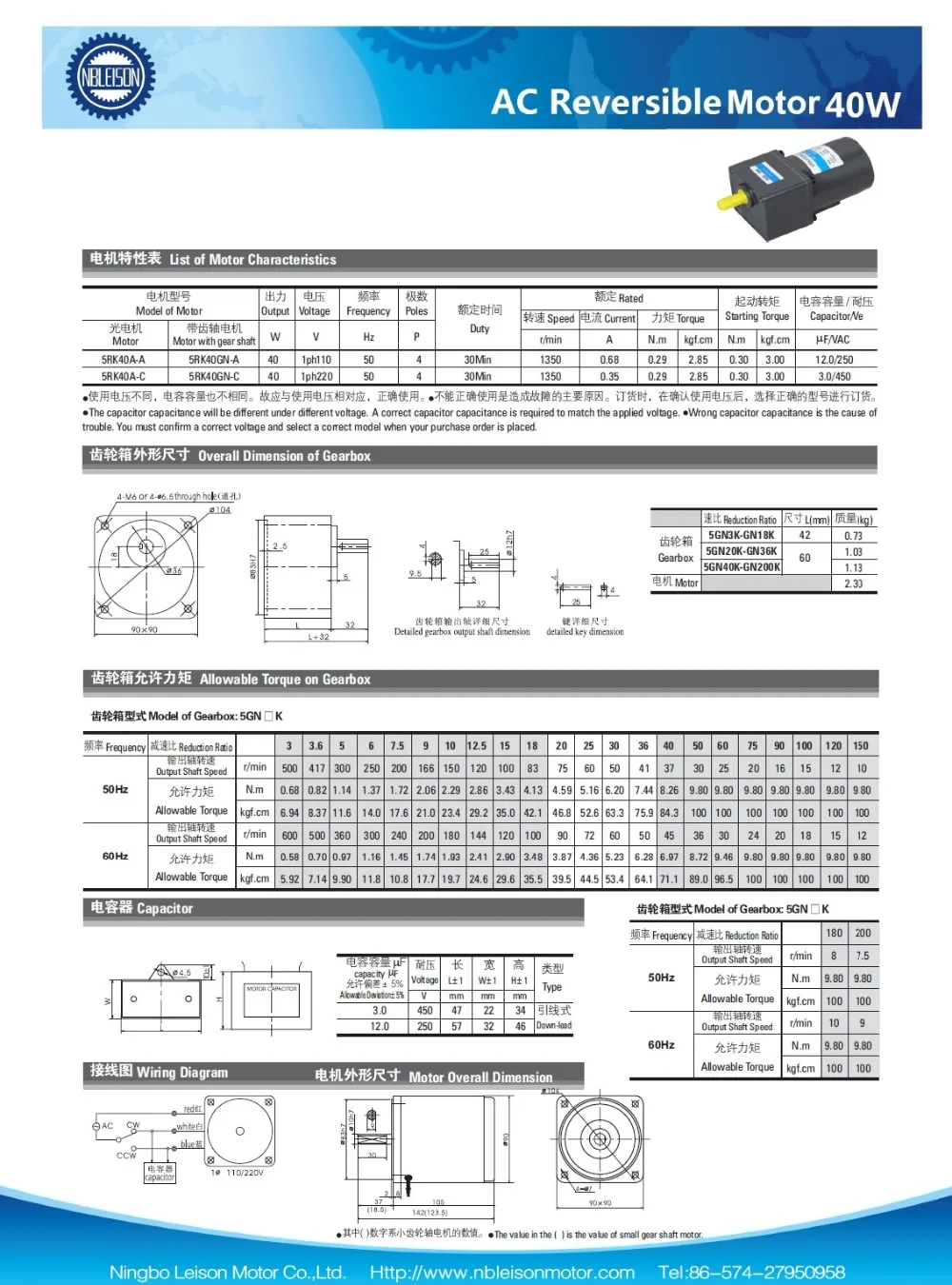

3. Specifications of 5RK40A

Note: It's the typical specificaitoin for reference only, We can choose DC motor with different voltage speed to meet your torque and speed requirement.
