200W 300W 400W 500W 3000RPM 48V High Torque Brushless DC Motor

FOB Reference Price:Get Latest Price
$55.80 - $130.00 / Piece | 1 Piece/Pieces (Min. Order)
Voltage(V):
48v
Output Power:
110-660w
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
LEISON MOTOR
Model Number:
86BLF
Usage:
Boat, Car, Electric Bicycle, Fan, Home Appliance, Other
Certification:
CE, ROHS
Type:
Micro Motor
Torque:
0.3-2.1N.m
Construction:
Permanent Magnet
Commutation:
Brushless
Protect Feature:
Totally Enclosed
Speed(RPM):
1000-8000rpm
Continuous Current(A):
customized
Efficiency:
IE 1
Winding Type:
star
Hall Effect angle:
120 degee electrical angle
Insulation Class:
B
Ambient Temperature Range:
-20 degree to 50 degree
Insulation Resistance:
100MΩ Min . 500V DC
Shaft diameter:
12.7MM
Motor dimension:
86mmx 57-124mm(dia*length)
Motor net weight:
1.1-2.75kg
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1. B3B Corrugated Standard Export Carton or Styrofoam box or Blister Tray
2. As customer's requested
Port
NINGBO

1 Brushless Motor Specification:



Model86BLF0786BLF0686BLF0186BLF0286BLF0386BLF04
Number of Poles8
Number of Phases3
Nominal voltage VDC48
Rated speed RPM3000
Rated Torque N-m2.11.81.41.050.70.35
Rated Current Amps2218149.66.63.9
Output Power Watts660550440330220110
Peak Tourque1 N-m6.35.44.23.22.11.05
Peak Current Amps554638.029.019.810.8
Torque constant N-m/A0.1160.1150.1150.1150.1120.11
Back EMF V/kRPM12.212.012.012.011.811.5
Rotor inertia g·cm²185015501250950650350
Body Length(L) mm12410994816757
Mass kg4.83.22.752.21.751.1

Note : It's just the typical technical data for you reference, The specification such as voltage, speed, torque, shaft can customized, We can also offer BLDC5015 driver for this kind of motor!

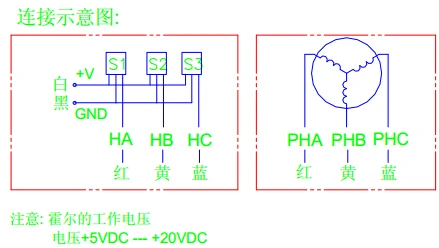

Dimension and Wiring Diagram:


Driver details:



1.Voltage: 24~50VDC
2. Current output:15A Rated,45A Peak
3. Good price,better quantity
4. Good choice for 42mm and 57mm,86mmm diameter brushless dc motor



Note: It's just the typical technical data for your reference, The specification such as voltage, speed, torque, and shaft can be customized.
