TR8 TR10 brass nut nema 23 lead screw linear actuator stepper motor

FOB Reference Price:Get Latest Price
$20.88 - $40.00 / Piece | 1 Piece/Pieces (Min. Order)
Step Angle(degrees):
1.8 degree
Holding Torque:
55-250N.cm
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
LEISON MOTOR
Model Number:
23HS linear stepper motor
Phase:
2
Type:
Hybrid
Certification:
CE, ROHS
Current / Phase:
2.0-4.2A
Wire:
4 wires
lead screw:
customized from 100-300mm
lead screw length:
6.35 or 8mm diamter
screw material:
POM or Brass
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
B3B Corrugated Standard Export Carton or pallet packing
Port
NINGBO

1 TR8 TR10 brass nut nema 23 lead screw linear actuator stepper motor Information:

Electrical Specifications:

Series Model Step Angle (°) Motor Length (mm)Rated Current (A) Phase Resistance (Ω) Phase Inductance (mH) Holding Torque (N.cm Min) Detent Torque (N.cm Max) Rotor Inertia (g.cm²) Lead Wire (No.) Motor Weight (g)
23HS04081.8412.01.22.5552.51504470
23HS44251.8452.51.02.2802.81904520
23HS54251.8512.51.23.21102.81904520
23HS64031.8562.51.34.21103.52804680
23HS74251.8642.51.54.51505.03804850
23HS84251.8762.51.86.51806.044041050
23HS84041.8764.20.61.81806.044041050
23HS14041.81003.01.45.52501068041250

*Note: We can manufacture products such as lead screw length, nut materal according to customer’s requirements.

Screw Specification:


Specification
Screw DiameterStep LengthScrew Lead
1Tr80.048
2Tr 9.530.01272.54
0.02545.08
0.050810.16

*Shaft length can be custom-made.

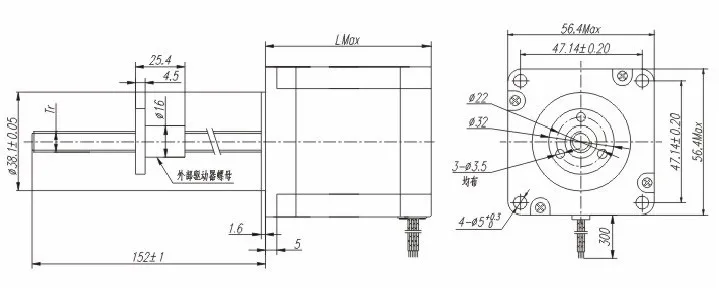

Dimension and wiring diagram:

nema 23 lead-1.jpg

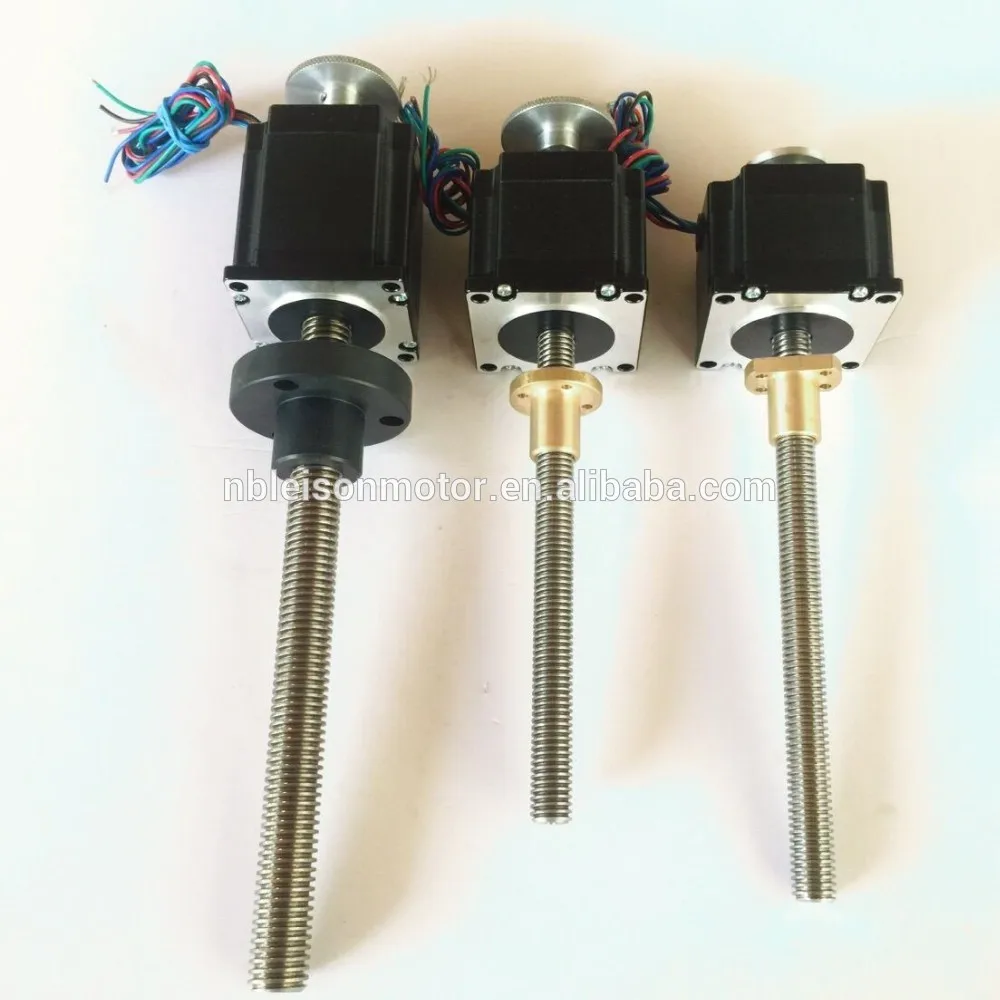

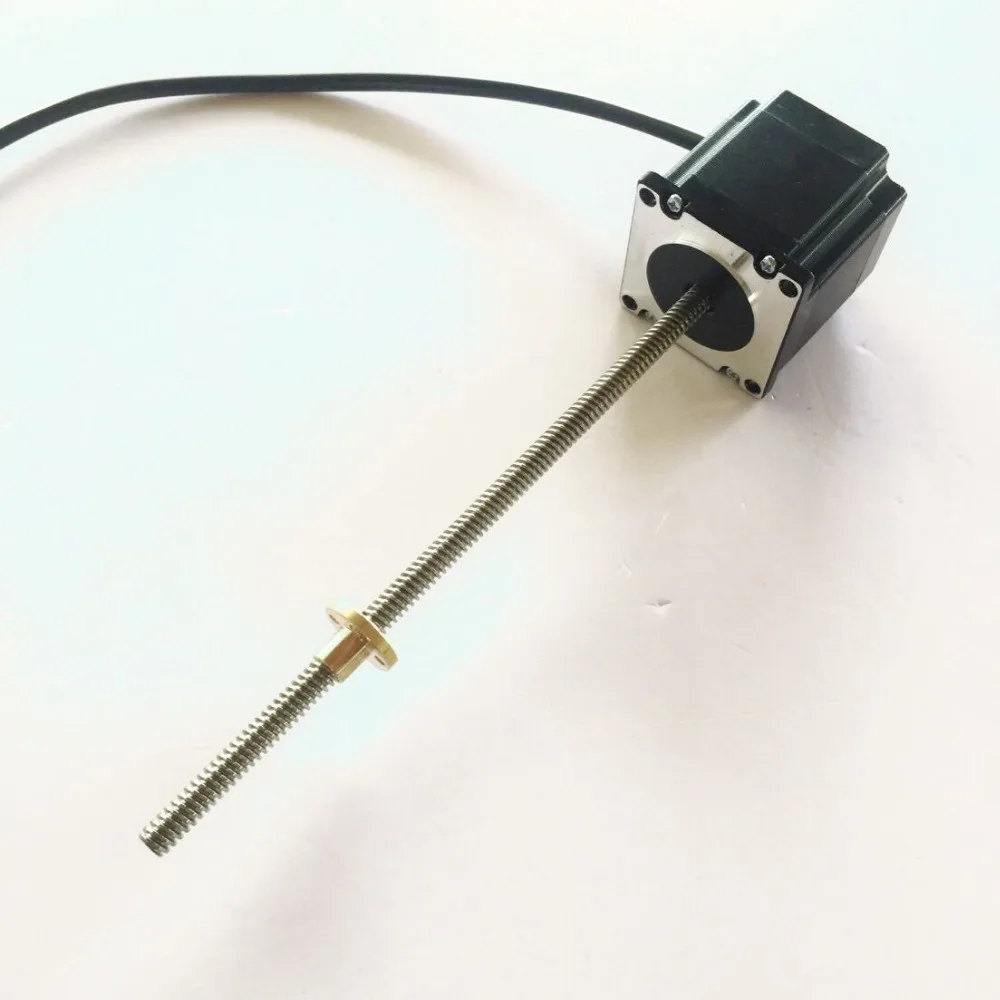

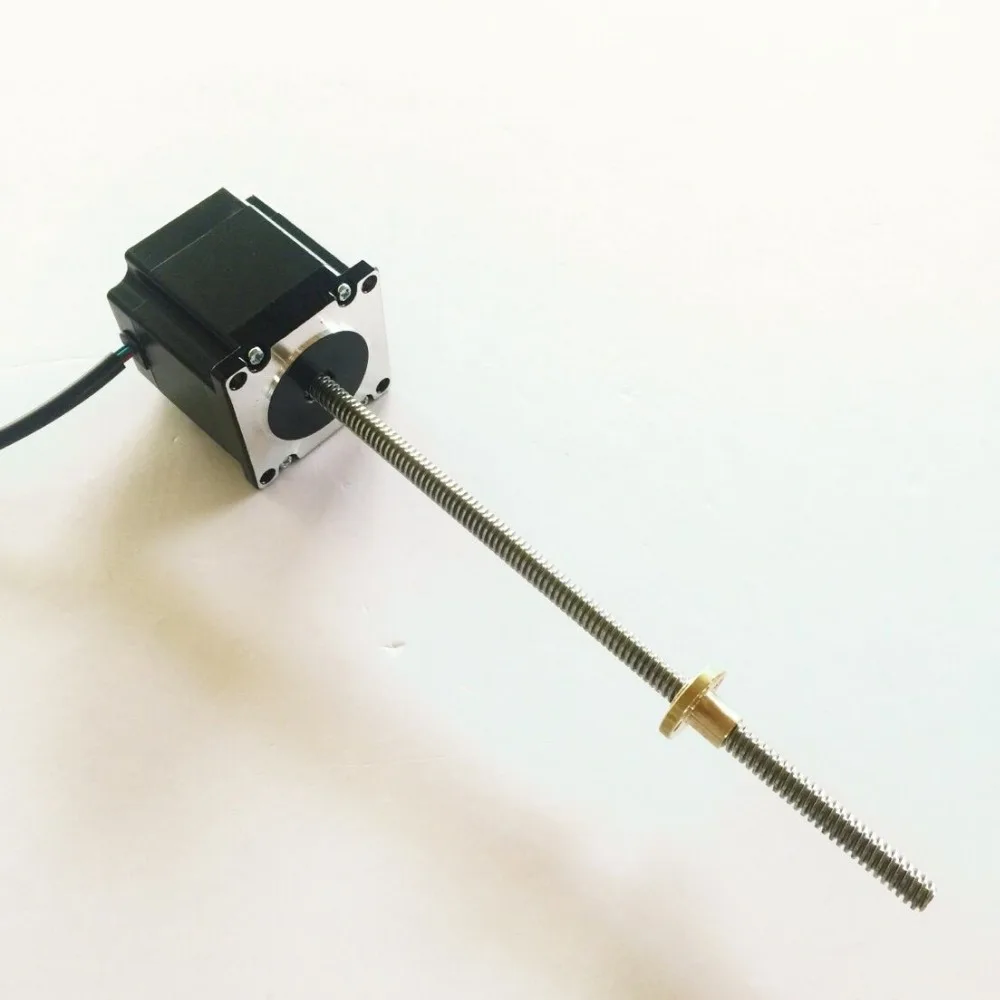

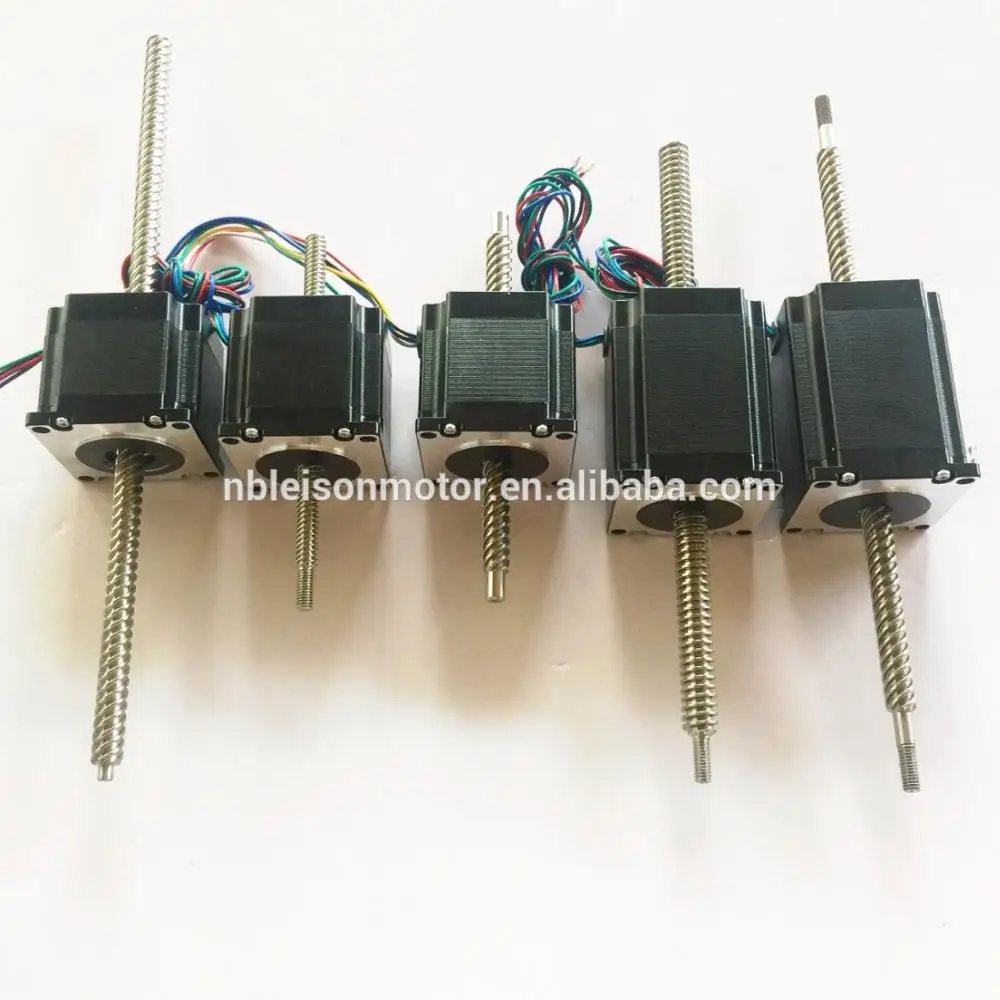

Motor Photo:

12341

 .jpg

Company Information

1. Basic Information

Ningbo Leison Motor Co. Ltd is a manufacturer and exporter of various of motors with over 10 years experience.

Our product ranges include:
1) DC Brush Motor: 6-130mm diameter, 0.01-1000W output power
2) DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power
3) DC Planetary Gear Motor: 10-82mm diameter, 0.1-100W output power
4) Brushless DC Motor: 28-110mm, 5-1500W output power
5) Stepper Motor: NEMA 08 to NEMA 43, Can with gearbox and lead screw
6) Servo Motor: 42mm to 130mm diameter, 50-4000w
7) AC Gear Motor: 49 to 100mm diameter, 6-140 output power

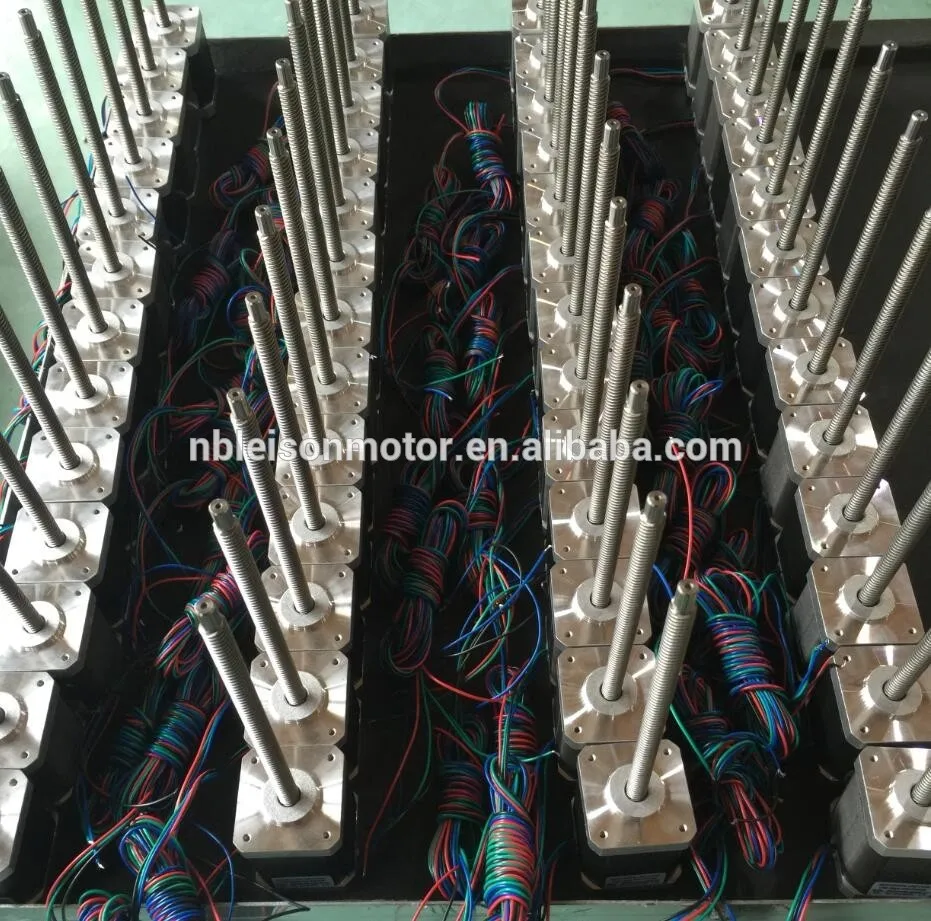

2. Manufacturing Plant
