64mm 12v/24v high speed high torque dc motor

FOB Reference Price:Get Latest Price
$15.50 - $18.50 / Piece | 1 Piece/Pieces (Min. Order)
Voltage(V):
12V/24V/36V
Output Power:
45W
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
LEISON MOTOR
Model Number:
ZY64
Usage:
Boat, Car, Electric Bicycle, Home Appliance, fan, power tool, water pump
Certification:
CE, ROHS
Type:
Micro Motor
Torque:
1400g.cm
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Totally Enclosed
Speed(RPM):
2000-8000rpm
Continuous Current(A):
customized
Efficiency:
IE 1
Brush type:
Leaf brush system
Material of the housing:
SECD
Bearing:
Oil Bearing
Direction of Rotation:
CW/CCW
Shaft Material:
Carbon Steel or Stainless Steel
Shaft type:
round,d-cut or with customized
Shaft diameter:
8mm
Motor dimension:
64x105mm
Motor net weight:
Aboutt 550g
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1. B3B Corrugated Standard Export Carton or Styrofoam box or Blister Tray
2. As customer's requested
Port
NINGBO/SHANGHAI/SHENZHEN

64mm 12v/24v high speed high torque dc motor :

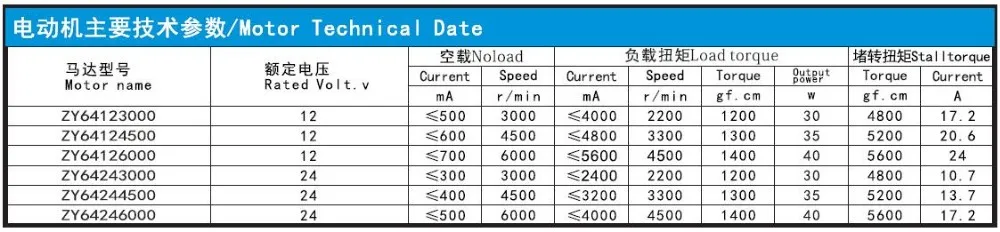

1.Specification:

.jpg



Note : It's just the typical technical data for you reference, The specification such as voltage, speed, torque, shaft can customized.

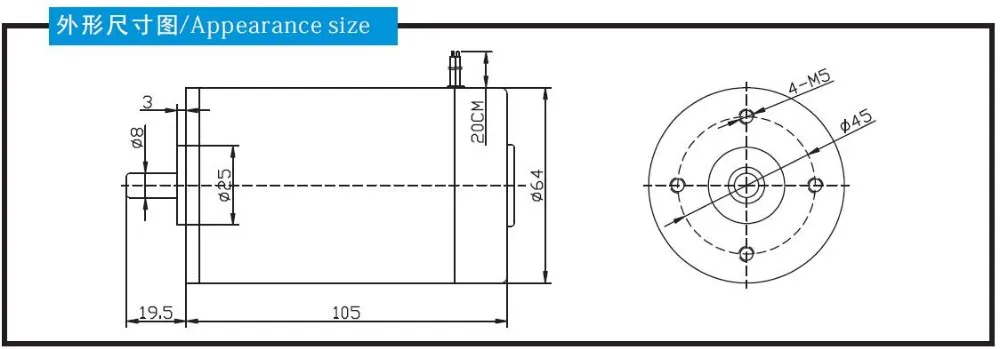

Dimension:

.jpg

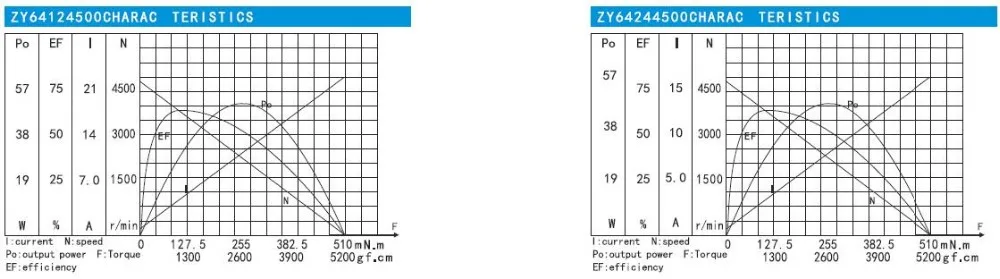

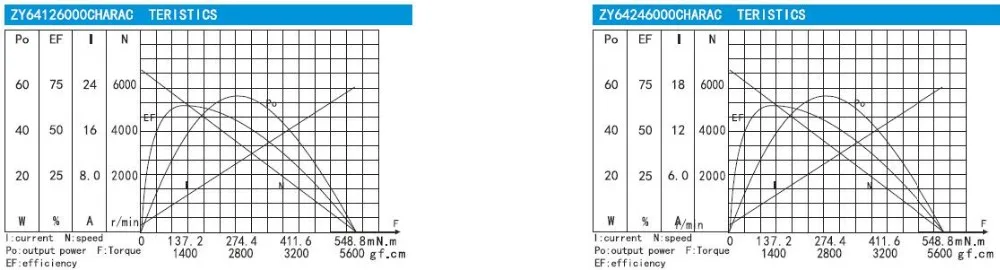

Performace Curve:




Motor Specifications (Can be Customized)

Part Number
ZY64
Dimension
Dia=64mm
Voltage
DC Input 12v,24V,36V,48V,60V,72V,90V,110V,220V (Can be Customized)
Power
(Can be Customized)
Speed
Variable speed from 1000-8000rpm (Can be Customized)
Torque
Up to 1500gf.cm rated torque(Can be Customized)
Shaft
shaft Dia: 8mm
Shaft type: Bare /D-Cut /Double D-Cut /Pin Hole /Keyway shaft (Can be Customized)
Bearing At Output
Ball bearing
Accessories
Wires, Connectors, Gearbox, Encoder, Brake, Cool Fan, etc (Optional)
Weight
About 400g
Note
Motor specs such as voltage, speed, torque, shaft can be customized. Please contact us if didn't find a suitable motor from our specifications.
